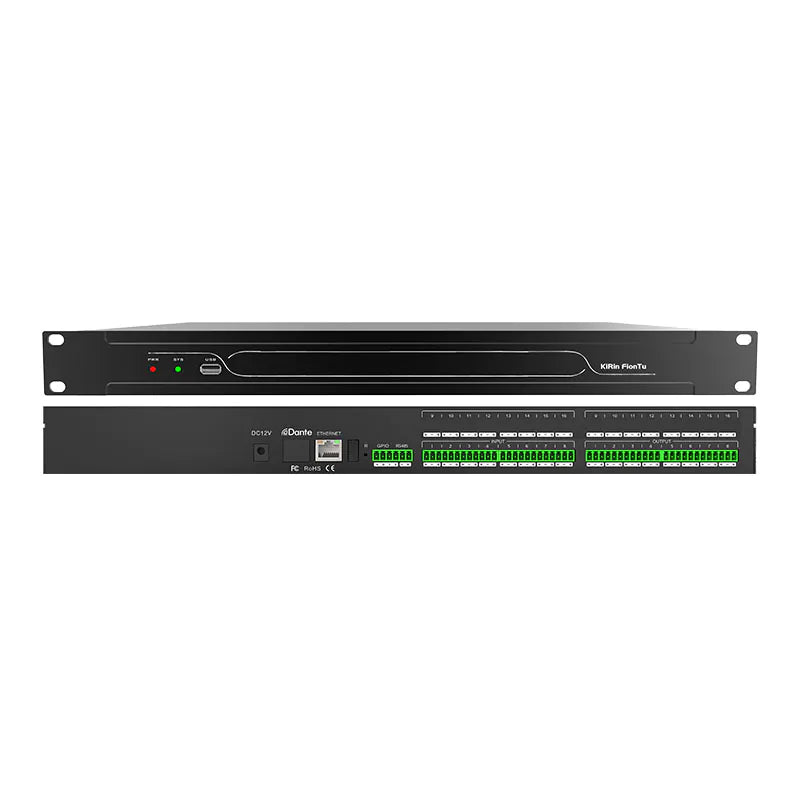

kirin Fion Tu KRP-DSP808E Audio Processor

Feature:

1. 8-in/8-out high-performance audio processor with 24-bit/48kHz sampling rate, built-in high- performance DSP for superior audio processing capabilities.
2.  Integrated functions include gain-sharing auto-mixing, adaptive feedback cancellation (AFC), acoustic echo cancellation (AEC), automatic noise suppression (ANC), matrix mixing, and
   automatic gain control for clear and stable audio output.
3. Input Channels: Each channel features preamp, signal generator (sine/pink/white noise), expander, compressor, 5-band parametric EQ, 48V phantom power, phase control, and
   mute—supporting versatile audio needs.
4.  Output Channels: Each channel includes 31-band graphic EQ, delay, high/low-pass crossover, limiter, phase control, and mute for precise sound tuning.
5.  Supports assigning individual Chinese names to each channel for easier operation.
6.  Multilingual interface: Simplified Chinese, Traditional Chinese, and English.
7.  One-click display of all function modules; intuitive graphical software interface for easy
   control.
8.  Built-in control code generation for integration with central control systems.
9.  Supports 8 scene presets for quick adaptation to various application environments.
10.  Built-in device lock and power-off memory protection to prevent misoperation.
11.  Real-time device management via Ethernet multi-purpose data transmission and control port.
12.  One-key factory reset supported (press and hold for 5 seconds).
13.  Channel parameter copy & paste function to improve efficiency.
14.  Supports management by up to 10 users per host; usernames can be set in Chinese.
15.  USB interface supports firmware upgrades, playback, and recording.
16.  Built-in bidirectional RS-485 and 2 GPIO interfaces.
17.  Accessible via web browser; no CD installation needed—PC client and platform components
    available for direct download.
18.  Optional control panel available for expanded application scenar

 Download Data sheet
