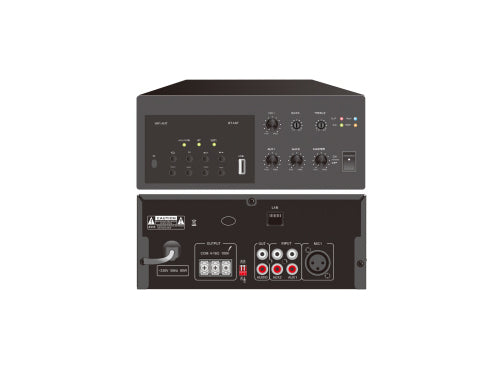

ITC T-W60E/T-W240E Power Amplifier (Mini digital power amplifier with WIFI-Bluetooth network)

Description:

This is a desktop mini constant voltage power amplifier, which integrates features like WiFi 2.4G, Bluetooth 5.0, Aux input, and USB playback. It supports AirPlay, DLNA, TuneIn, iHeartRadio, Spotify, Tidal, Napster, Qobuz, and local playback, and allows easy WiFi control and program streaming. Lightweight and portable, it is suitable for use in small indoor spaces such as homes, villas, cafes, and shopping malls for background music and broadcasting.

Features:

* Desktop design with a beautiful appearance, lightweight, and easy to carry.

* Adaptable to various sound effect venues: This series includes 40W, 60W, 120W, and 240W models, offering choices based on the required coverage area.

* Output terminals are selectable, with options for 4~16 ohm constant resistance output or 100V output, allowing both short-range music playback and long-range broadcasting of clear sound.

* Latest high-reliability switching power supply and digital power amplifier core technology.

* 1-channel XLR microphone audio input with 48V power supply and independent volume control.

* 2-channel line audio inputs, each with individual volume control.

* With priority function, when there is microphone 1 input, other input audio signals can be muted.

* Built-in indicators for power supply, signal, distortion, protection, and other statuses.

* Includes protection features for amplifier short-circuit, overload, and over-temperature.

* It supports a USB port, allowing audio files to be played through a high-quality sound system. It is compatible with various audio formats, including MP3, WMA, AAC, AAC+, ALAC, FLAC, APE, and WAV.

• Supports Bluetooth receiving functionality, allowing connection to devices such as computers, smartphones, etc.

• Specifications:






  Model		T-W60E		T-W240E
  Rated output power		60W		240W
  Speaker output	4 ～16 Ω/70V
  Input sensitivity & source impedance	MIC input: +5mV，Balanced XLR connector;AUX1-2 input: 350mV，Unbalanced RCA connector
  Tone	Bass: 100Hz±10dB, Treble: 10KHz±10dB
  Frequency response	80～16KHz(-3dB)
  Signal-to-noise ratio	≥75dB
  Total harmonic distortion	Rated power output, distortion ≤ 1%
  Media functions	WiFi2.4G, Bluetooth 5.0, Aux in, USB playback, Ethernet interface
  Priority functions	Yes, MIC1 input has priority over other inputs.
  Protection	Overheat protection, short circuit protection, overload protection
  Input power	~230V 50Hz
  Dimensions	215×208×88mm			214×303×88mm
  Weight	2.37KG 2.4KG 2.5KG			3KG
  LAN (RJ45 interface)	Support 10/100Mbps 214×303×88mm
