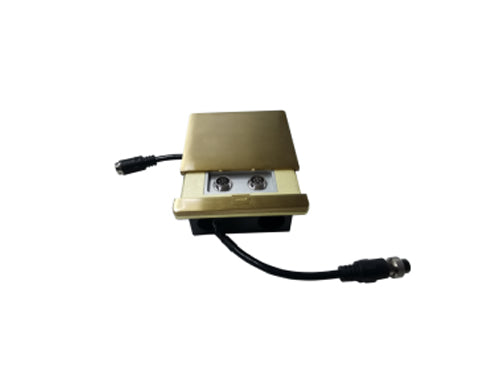

ITC TS-6F Socket
ITC TS-6F Socket
Couldn't load pickup availability
Feature:
* Support network interface extension function.
* One in and three out, connect the unit and the controller, realize the network function.
* Adopt 100M/10M adaptive network transmission, realize hand-in-hand cascade.
* Each six-pin aviation connector supports IEEE802.3, IEEE802.3u, IEEE802.3x standards, and has strong anti-interference ability.
* The bottom box is waterproof.
Specification:
|
Model |
TS-6F |
|
Total power consumption |
1.5W |
|
Network port standard |
IEEE802.3, IEEE802.3u, IEEE802.3x |
|
Power supply |
Six-pin port power supply |
|
Color |
Gold |
|
Bottom box size |
100×100×45mm (L×W×H) |
|
Panel size |
124×120×7.6mm (L×W×H) |
|
Weight |
About 0.6kg |
|
Installation method |
Floor embedded |
|
Working temperature |
-10℃~+45℃ |
|
Working humidity |
20%～80% relative humidity, no condensation |
