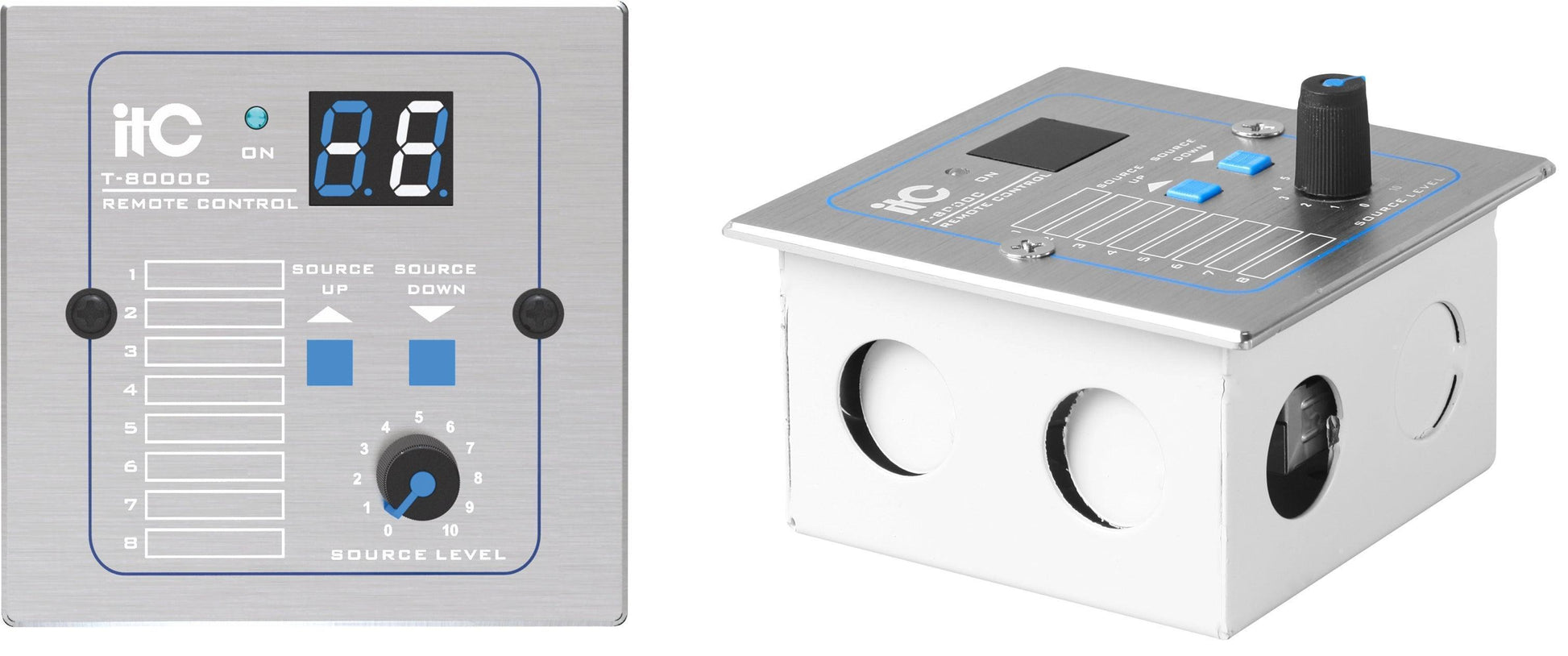

ITC T-8000C (Grey & Aluminum) Remote Control Module

Features:

• The T-8000C remote control module is connected with T-8000 through universal industrial standard CAT 5 for each eight zones volume adjustment at a remote and different location from the control center.
  * Two different options: T-8000C of aluminum material in grey color and T-8000CW of ABS material in white color.
  * Each controller provides eight RJ45 ports for the remote-control module.
  * The CAT 5 wiring is not only featured of cost-effective, convenient layout, but also integration of RS 485 communication, audio transmission and DC 24V power supply together.
  * The remote-control module family also has higher functional module of T- 8000B and microphone module of T-8000D.
  * Zone LED indicator with up/down buttons.
  * Volume control is provided for overall output level control.
  * DC 24V power supply from controller, low power consumption 5W.
  * Extra DC 24V power supply is needed when communication distance is more than 50 meters.
  * Analog to digital conversion working principle to adjust controllers' volume.
  * Metal mounting box is supplied.
